DESCRIPTION
classical wrapped V-belt are available in various sizes and lengths to accommodate different machinery and equipment.
They are easy to install and require minimal maintenance for efficient performance.it has better performance in Oil&Heat
Resistance .
STRUCTURE
| NO. | Name | Function | Material |
| 1 | Outside Fabric | Protect the lining tensile member | Poly ester Cotton Canvas |
| 2 | Tensile Member | pass the dynamic force | Polyester Wire |
| 3 | Top Rubber | Naintain the top shape of the adhesive tape | NR CR SBR |
| 4 | Buffer Rubber | protect the adhesive force of the tensile member | NR CR SBR |
| 5 | Bottom Rubber | Maintian the bottom shape of the adhesive tape | NR CR SBR |
ADVANTAGE
High efficiency: Classical wrapped V-belts are designed to provide high power transmission efficiency, ensuring minimal energy loss during operation.
Long service life: These belts are made from high-quality materials that are resistant to wear and tear, resulting in a longer service life compared to other types of belts.
Low maintenance: Classical wrapped V-belts require minimal maintenance, making them a cost-effective option for applications that require reliable power transmission.
High load-bearing capacity: These belts can handle heavy loads without stretching or slipping, making them suitable for a wide range of industrial applications.
SPECIFICATION
| Type | Top width | Pitch width | Height | Length range |
| mm | mm | mm | mm | |
| Z/FM/O | 10 | 8.5 | 6 | 280—2480 |
| A | 13 | 11 | 8 | 330—8000 |
| B | 17 | 14 | 11 | 457—17000 |
| C | 22 | 19 | 14 | 700—17000 |
| D | 32 | 27 | 19 | 1100—17000 |
| E | 38 | 32 | 23 | 3300—17000 |

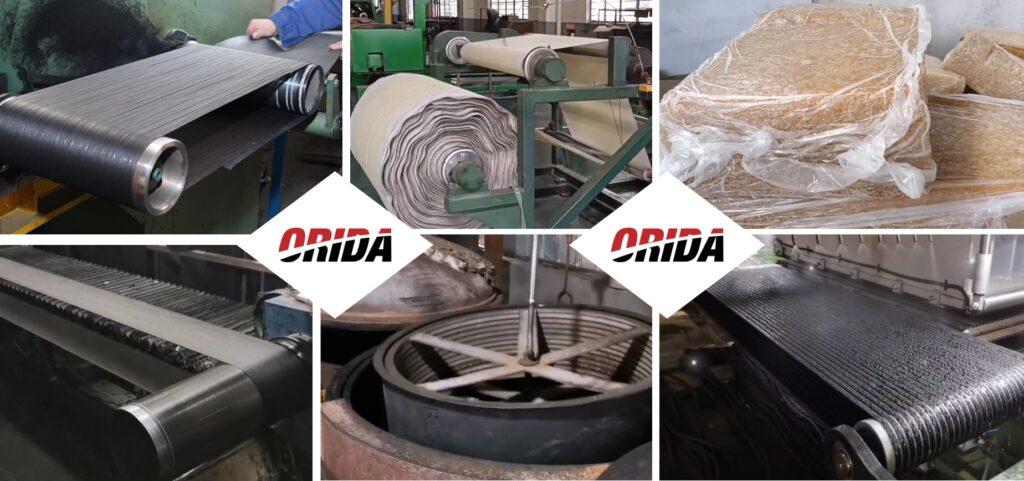

PRODUCE EQUIPMENT
APPLICATION
PACKAGING
