DESCRIPTION

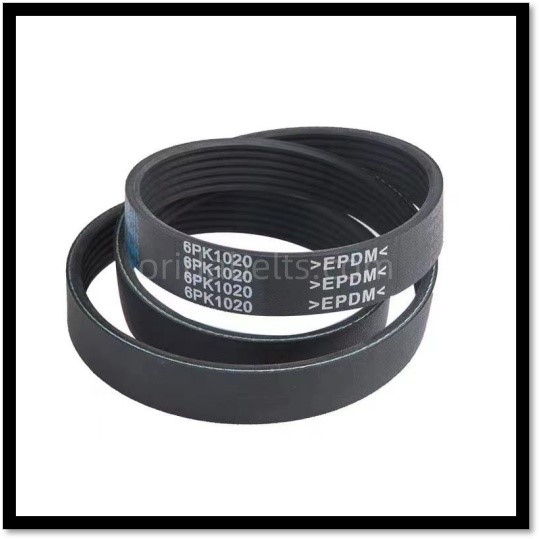

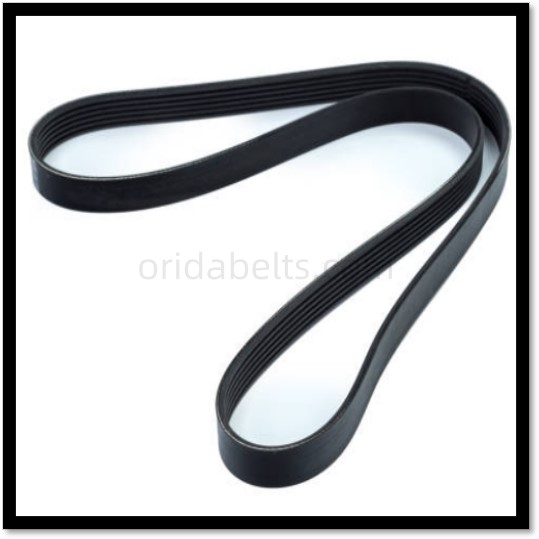

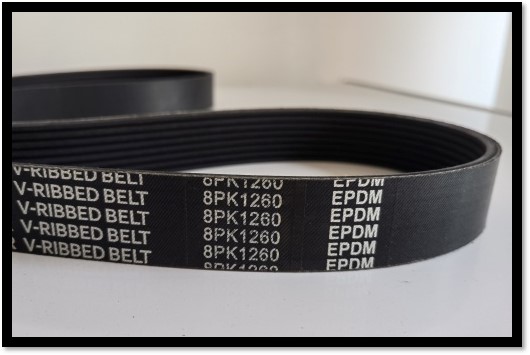

EPDM Multi V-belt is made of EPDM material , Performance is better Than CR material , its use life can reach to Above 100.000kms , It’s also steam resistant and more ozone resistant, better in high temperature .
STRUCTURE
— Belt Cord
1.Using imported Miller cord from Germany, with high tensile strength and long fatigue life.,extreme performance within a temperature range from -40 to +130 degree .
— Belt Teeth

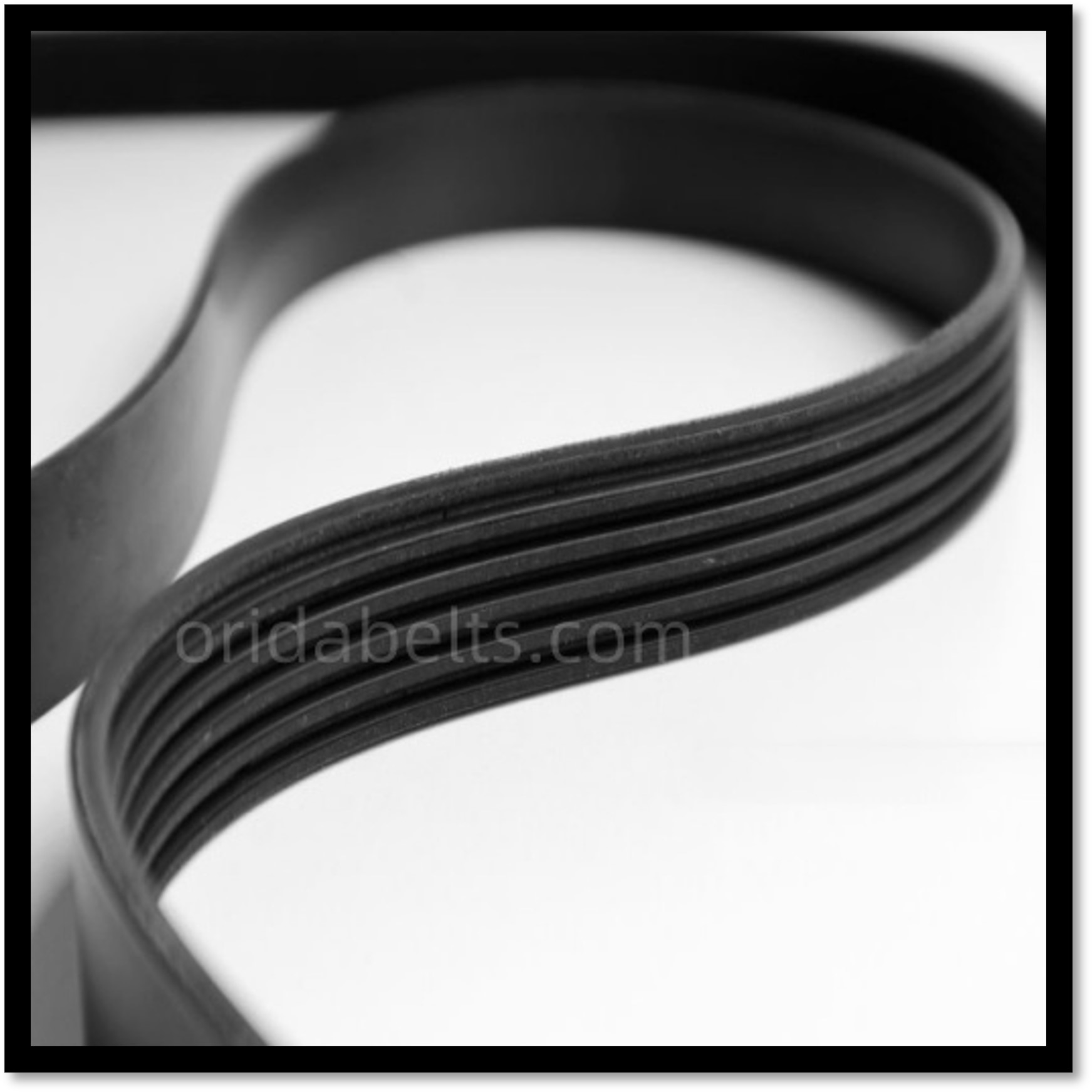

2.The tooth surface’s raw material is added with a reinforcing material composed of transverse fibers, ensuring strong compressive and abrasion resistance, low noise, oil resistance, especially with exceptional performance in oxidation resistance, ozone resistance, and corrosion resistance.
—Belt Surface
3.Belt Canvas surface undergoes multiple processing techniques, ensuring reliable bonding with EPDM rubber, Be able to withstand friction with tensioner wheels for an extended period of time. excellent technology of High quality
PACKAGING
1.Coiling:The belts are coiled into loops to minimize space.
2.Bags or Boxes:Coiled belts are often placed in plastic bags or cardboard boxes to protect them from dust and moisture.
PRODUCE EQUIPMENT
The EquiFpment for producing Multi Ribbed belt mainly includes the following
1.Rubber Mixing Equipment
2.Forming Equipment
3.Vulcanization
4.Cutting Equipment
APPLICATION
BELT SPECIFICATION
| Type | Rib Section | Angle of rib | Belt Width | Belt Thickness | Ribs No. | Length Range |
| 3PK | 3.56 | 40° | 10.68 | 4.6mm | 3 | 600-3000mm |
| 4PK | 3.56 | 40° | 14.24 | 4.6mm | 4 | 600-3000mm |
| 5PK | 3.56 | 40° | 17.8 | 4.6mm | 5 | 600-3000mm |
| 6PK | 3.56 | 40° | 21.36 | 4.6mm | 6 | 600-3000mm |
| 7PK | 3.56 | 40° | 24.92 | 4.6mm | 7 | 600-3000mm |
| 8PK | 3.56 | 40° | 28.48 | 4.6mm | 8 | 600-3000mm |
| 9PK | 3.56 | 40° | 32.04 | 4.6mm | 9 | 600-3000mm |
| 10PK | 3.56 | 40° | 35.6 | 4.6mm | 10 | 600-3000mm |
| 11PK | 3.56 | 40° | 39.16 | 4.6mm | 11 | 600-3000mm |
| 12PK | 3.56 | 40° | 42.72 | 4.6mm | 12 | 600-3000mm |
